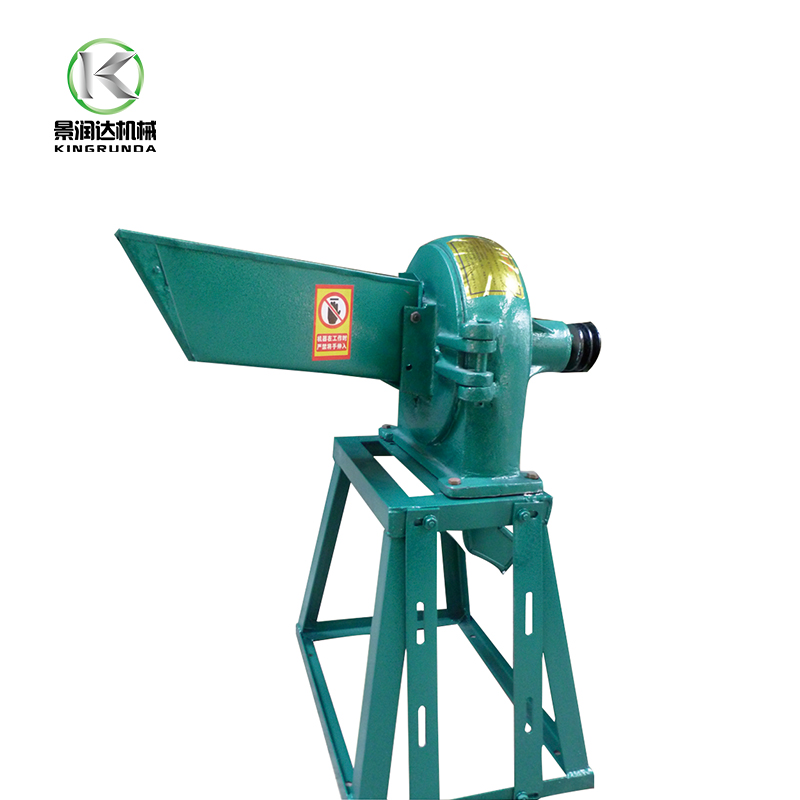

9FC-260 works with single phase 3kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.
Print Product Summary
sales@kingrunda.com
+86-15954805369
Specification


General introduction


9FC-260 works with single phase 3kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.


Here is a  list of production capacity for reference when selecting disk mill

NO

Model

Sieve   size

Motor   power

(kw)

Raw   material

Final   product

Production   capacity

(kg/hour)

1

FFC45A

1.5mm

11-13

Corn

Corn flour

480

2

9FC-360

1.5mm

7.5-11

Corn

Corn flour

1000

3

9FC-500

1.5mm

22

Corn

Corn flour

2500

4

9FC-600

1.5mm

30

Corn

Corn flour

3500

5

9FC-800

1.5mm

55

Corn

Corn flour

8000



Advantages and wide application

1Disk mill is suitable for home, small factory or unit use.

2 It is small, strong and reliable. It can use single phase 2.2kw motor. It can work without motor power.

3It is mostly wide use crushing machine. In life and industrial activities, it is really an ideal all purpose crushing machine.



1) All kind of grains of corn, sorghum, rice, soybean, etc.

2) Water soaked soybean.

3) All kind of animal feed

4) Chemical industrial material

5) Herbal medicine

6) Agricultural plant including fresh sweet potato, fresh potato, pepper, fresh fruit, etc.

7)  Pepper etc spice material

8) Peanut hull,  rice hull, wheat hull, corn cob, tree bark, leaves, straws.

9) Shrimp, fish powder, sea food

10) Dehydrated vegetables, cakes, tea. Etc.

11) Gypsum powder

12) Metal calcium

13) Wine factory

14) Fish bone factory





Main Technial parameter
Model9FC-260
BrandKingrunda
Usage areaAll purpose
Crushing   fineness40-60 mesh
Capacity220kg/hour
Motor power3kw
Weight 65kg
Bearing6205
V-belt1200
Main shaft   R/min6000
Outer diameter   of rotating plate260mm
T type long   flat teeth qty3pc
T type short   flat teeth qty3pc

table 03.jpg



Have a question

Manufacture and supply of kinds of food machines, such as Bean peeling machine, Maize milling machine, Rice milling machine, Wheat flour milling machine, Corn/rice extruder machine,Vegetable cleaning machine,Pellet mill, Disk mill etc. Inquiry(Enquiry) for our latest export price, FOB CIF CFR.
