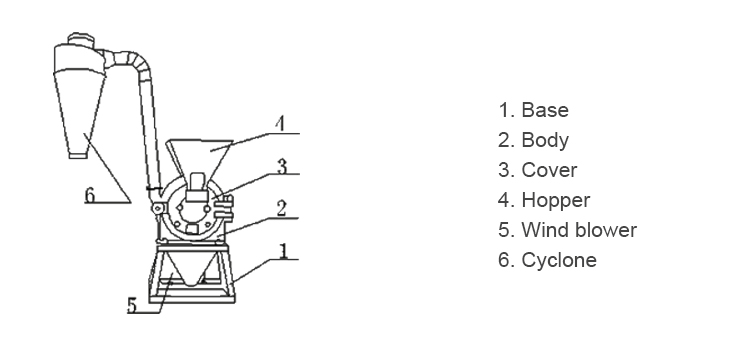

9FC-360 works with 7.5kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. It also has a wind blower, self feeding pipe, and output discharger, which makes work easier for operators. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.
General introduction
9FC-360 works with 7.5kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. It also has a wind blower, self feeding pipe, and output discharger, which makes work easier for operators. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.
Here is a list of production capacity for reference when selecting disk mill
NO | Model | Sieve size | Motor power (kw) | Raw material | Final product | Production capacity (kg/hour) |
1 | FFC45A | 1.5mm | 11-13 | Corn | Corn flour | 480 |
2 | 9FC-360 | 1.5mm | 7.5-11 | Corn | Corn flour | 1000 |
3 | 9FC-500 | 1.5mm | 22 | Corn | Corn flour | 2500 |
4 | 9FC-600 | 1.5mm | 30 | Corn | Corn flour | 3500 |
5 | 9FC-800 | 1.5mm | 55 | Corn | Corn flour | 8000 |
Advantages and wide application
1)Disk mill is suitable for home, small factory or unit use.

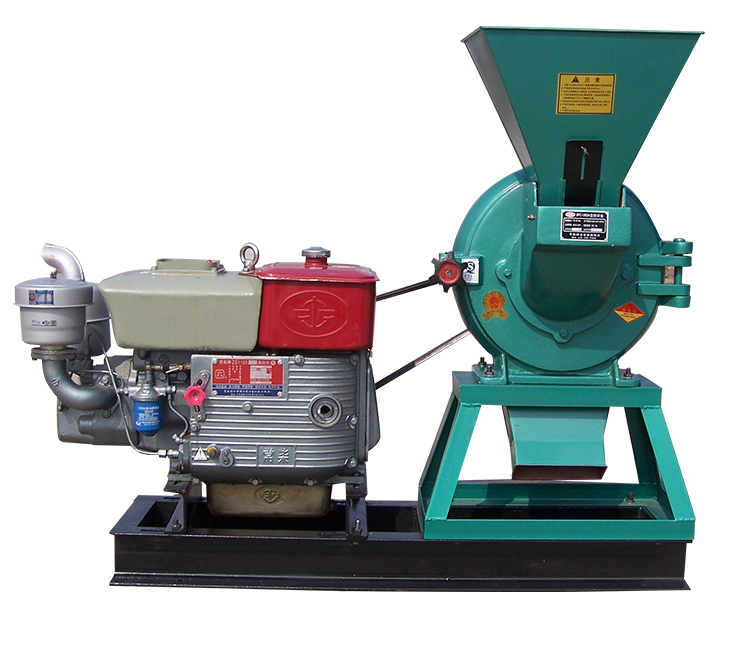

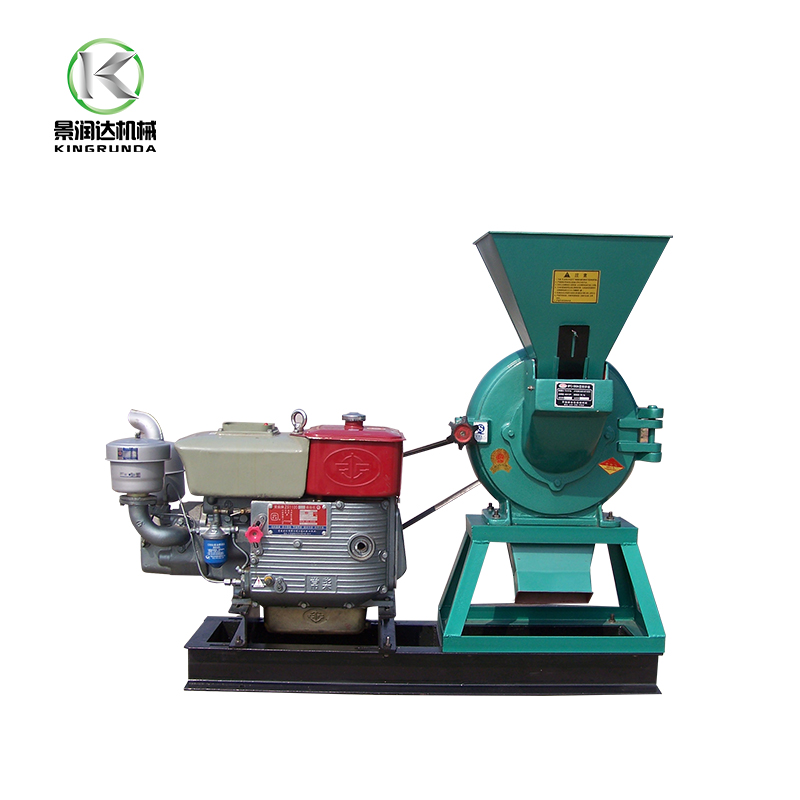

2) It is small, strong and reliable. It can use single phase 2.2kw motor. It can work without motor power.
3)It is mostly wide use crushing machine. In life and industrial activities, it is really an ideal all purpose crushing machine.
1) All kind of grains of corn, sorghum, rice, soybean, etc.
2) Water soaked soybean.
3) All kind of animal feed
4) Chemical industrial material
5) Herbal medicine
6) Agricultural plant including fresh sweet potato, fresh potato, pepper, fresh fruit, etc.
7) Pepper etc spice material
8) Peanut hull, rice hull, wheat hull, corn cob, tree bark, leaves, straws.
9) Shrimp, fish powder, sea food
10) Dehydrated vegetables, cakes, tea. Etc.
11) Gypsum powder
12) Metal calcium
13) Wine factory
14) Fish bone factory
Main Technial parameter | |
Model | 9FC-360 |
Brand | Kingrunda |
Usage area | All purpose |
Crushing fineness | 40-60 mesh |
Capacity | 1000-1500kg/hour |
Motor power | 7.5-11kw |
Weight | 168kg |
Main shaft R/min | 4200 |
Outer diameter of the rotator | 360mm |
Wind blower bearing | 6206 |
Main machine bearing | 6307 |
T type long flat teeth qty | 5pc |
T type short flat teeth qty | 5pc |
Production capacity for different grain material | ||
Material | Sieve hole size(mm) | Capacity (kg/H) |
wheat | 1.5 | 1100 |
corn | 1.2 | 950 |
sorghum | 0.8 | 480 |
soyabean | 0.6 | 320 |
Animal feed | 2.5 | 2000 |
Rice hull | 1.8 | 550 |
