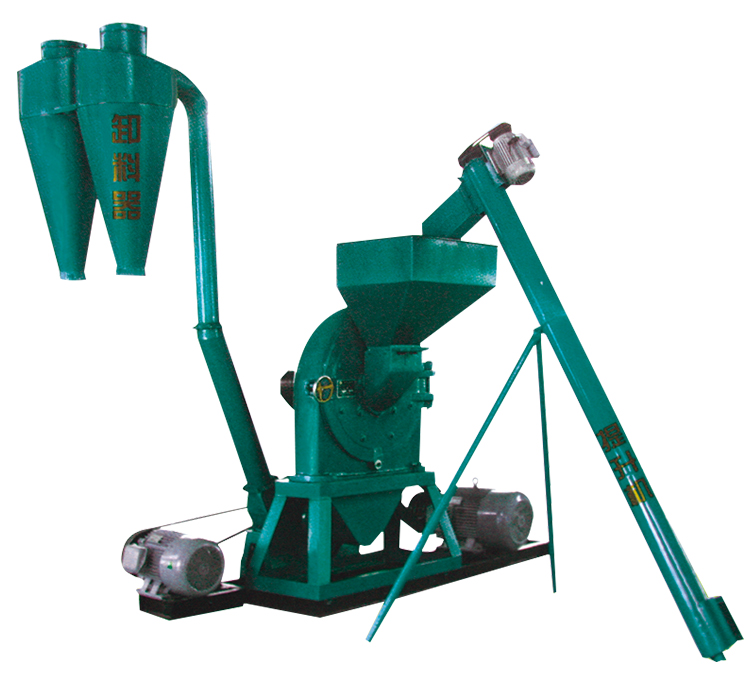

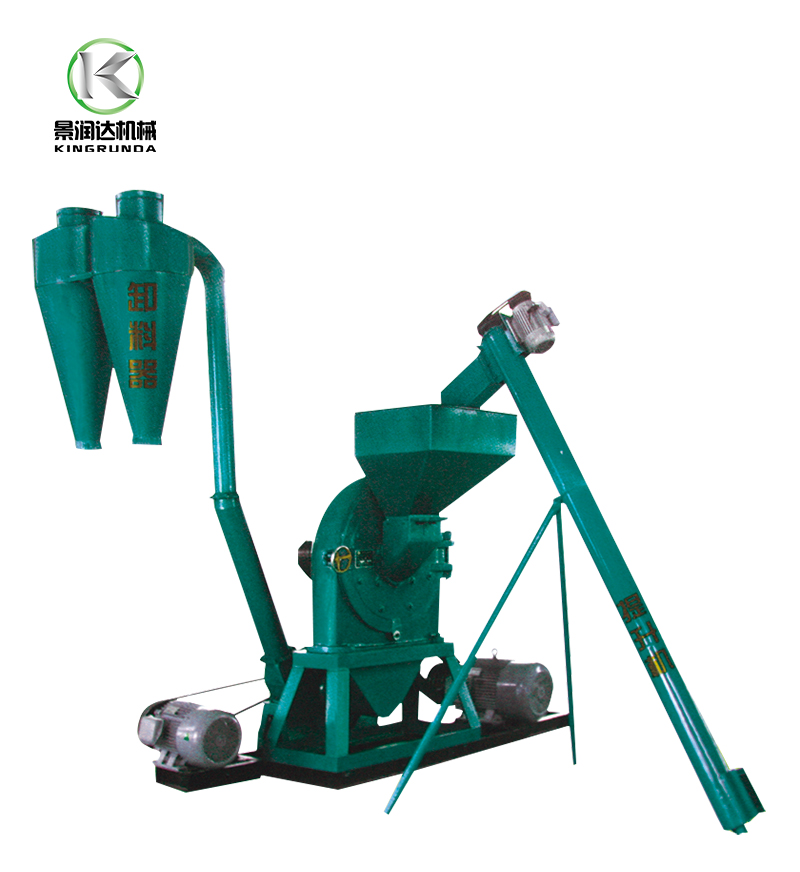

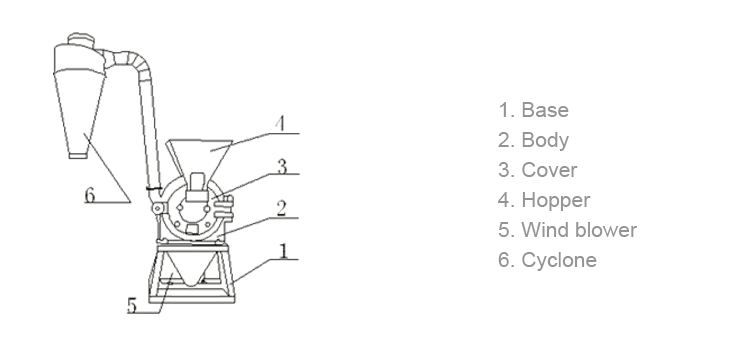

9FC-800 works with 45kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. It also has a wind blower, self feeding pipe, and output discharger, which makes work easier for operators. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.
Print Product Summary
sales@kingrunda.com
+86-15954805369
Specification


General introduction


9FC-800 works with 45kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. It also has a wind blower, self feeding pipe, and output discharger, which makes work easier for operators. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.



Here is a  list of production capacity for reference when selecting disk mill


NO

Model

Sieve   size

Motor   power

(kw)

Raw   material

Final   product

Production   capacity

(kg/hour)

1

FFC45A

1.5mm

11-13

Corn

Corn flour

480

2

9FC-360

1.5mm

7.5-11

Corn

Corn flour

1000

3

9FC-500

1.5mm

22

Corn

Corn flour

2500

4

9FC-600

1.5mm

30

Corn

Corn flour

3500

5

9FC-800

1.5mm

55

Corn

Corn flour

8000



Advantages and wide application


1Disk mill is suitable for home, small factory or unit use.

2 It is small, strong and reliable. It can use single phase 2.2kw motor. It can work without motor power.

3It is mostly wide use crushing machine. In life and industrial activities, it is really an ideal all purpose crushing machine.



1) All kind of grains of corn, sorghum, rice, soybean, etc.

2) Water soaked soybean.

3) All kind of animal feed

4) Chemical industrial material

5) Herbal medicine

6) Agricultural plant including fresh sweet potato, fresh potato, pepper, fresh fruit, etc.

7)  Pepper etc spice material

8) Peanut hull,  rice hull, wheat hull, corn cob, tree bark, leaves, straws.

9) Shrimp, fish powder, sea food

10) Dehydrated vegetables, cakes, tea. Etc.

11) Gypsum powder

12) Metal calcium

13) Wine factory

14) Fish bone factory



Main Technial parameter
Model9FC-800
BrandKingrunda
Usage areaAll purpose
Crushing   fineness40-60 mesh
Capacity1500-2000kg/hour
Motor power45kw
Weight 980kg
Main shaft   R/min2180
Outer diameter   of the rotator800mm
T type long   flat teeth qty8 pc
T type short   flat teeth qty8 pc
Round teeth   qty16 pc
Outer   dimension1600x950x1800mm


Production capacity for different grain material
MaterialSieve hole sizemmMeshCapacity (kg/H)
wheat1.5 /8000
corn1.2 /5600
sorghum0.6 /4800
rice hull0.6 /3800
rice 0.31001800
table 02.jpg

通用模板3 04.jpg
