Maize grinding hammer mill stainless steel

Maize grinding hammer mill  stainless steel
Maize grinding hammer mill  stainless steel
Maize grinding hammer mill  stainless steel
Maize grinding hammer mill  stainless steel
Maize grinding hammer mill  stainless steel
Brand
Kingrunda
Power
2kw-16kw
OEM
Yes
MOQ
1
Origin
China
Machinery factory
Manufacturer
Accepting agents
Yes, recruit Peeling/milling machine distributor

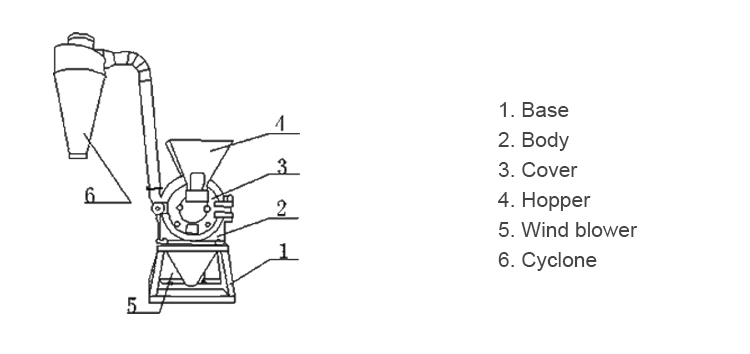

9FC-230 works with single phase 2.2kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. It also has a wind blower, self feeding pipe, and output discharger, which makes work easier for operators. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.



Maize grinding hammer mill  General introduction


9FC-230 works with single phase 2.2kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. It also has a wind blower, self feeding pipe, and output discharger, which makes work easier for operators. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.


Here is a  list of production capacity for reference when selecting disk mill

NO

Model

Sieve   size

Motor   power

(kw)

Raw   material

Final   product

Production   capacity

(kg/hour)

1

FFC45A

1.5mm

11-13

Corn

Corn flour

480

2

9FC-360

1.5mm

7.5-11

Corn

Corn flour

1000

3

9FC-500

1.5mm

22

Corn

Corn flour

2500

4

9FC-600

1.5mm

30

Corn

Corn flour

3500

5

9FC-800

1.5mm

55

Corn

Corn flour

8000



Maize grinding hammer mill Advantages and wide application


1Disk mill is suitable for home, small factory or unit use.

2 It is small, strong and reliable. It can use single phase 2.2kw motor. It can work without motor power.

3It is mostly wide use crushing machine. In life and industrial activities, it is really an ideal all purpose crushing machine.



1) All kind of grains of corn, sorghum, rice, soybean, etc.

2) Water soaked soybean.

3) All kind of animal feed

4) Chemical industrial material

5) Herbal medicine

6) Agricultural plant including fresh sweet potato, fresh potato, pepper, fresh fruit, etc.

7)  Pepper etc spice material

8) Peanut hull,  rice hull, wheat hull, corn cob, tree bark, leaves, straws.

9) Shrimp, fish powder, sea food

10) Dehydrated vegetables, cakes, tea. Etc.

11) Gypsum powder

12) Metal calcium

13) Wine factory

14) Fish bone factory





Main Technial parameter
Model9FC-230
BrandKingrunda
Usage areaAll purpose
Crushing   fineness40-60 mesh
Capacity200-500kg/hour
Motor power2.2-3kw, single phase
Weight 48-68kg
Bearing6205
V-belt1100
Main shaft   R/min6600
Outer diameter   of rotating plate230mm
T type long   flat teeth qty3pc
T type short   flat teeth qty3pc

table 03.jpg




Production capacity for different grain material
MaterialSieve hole sizemmCapacity (kg/H)
corn1.2240
animal feed3560
