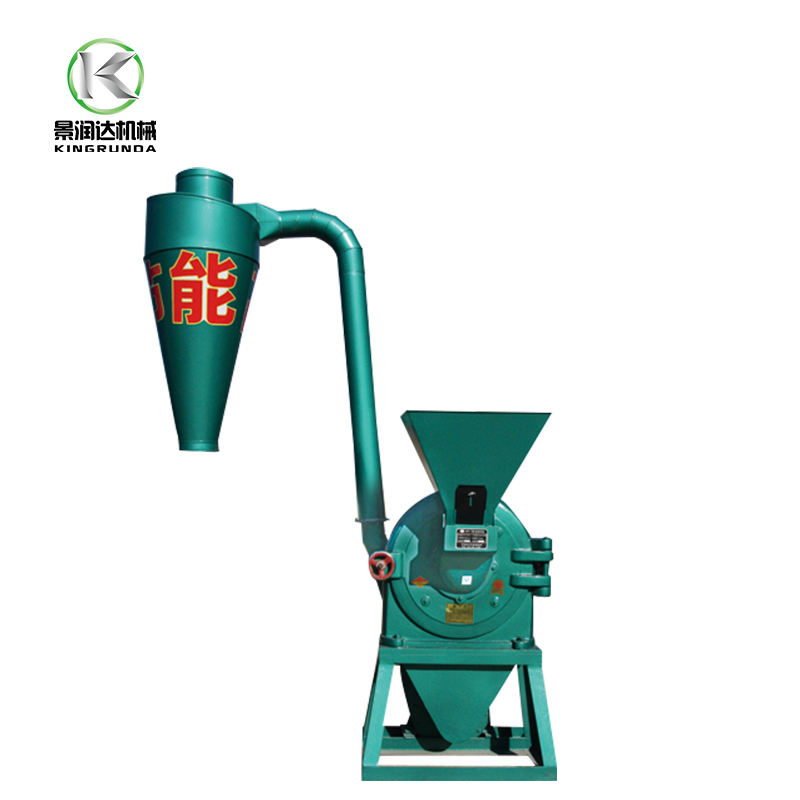

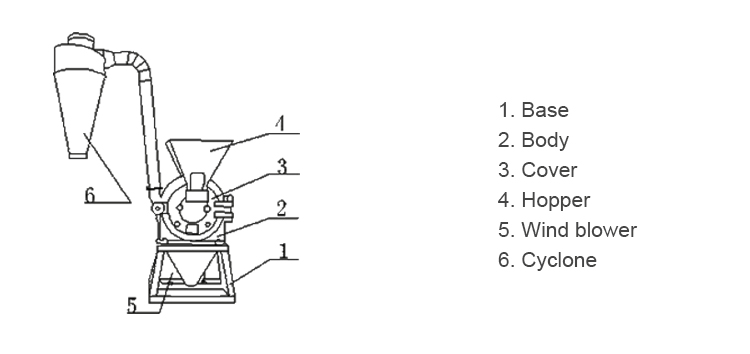

9FC-500 works with 22kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. It also has a wind blower, self feeding pipe, and output discharger, which makes work easier for operators. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.
Print Product Summary
sales@kingrunda.com
+86-15954805369
Specification



General introduction


9FC-500 works with 22kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. It also has a wind blower, self feeding pipe, and output discharger, which makes work easier for operators. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.

9FC-500 is ideal choice machine for medium sized animal feed factories.


Here is a  list of production capacity for reference when selecting disk mill


NO

Model

Sieve   size

Motor   power

(kw)

Raw   material

Final   product

Production   capacity

(kg/hour)

1

FFC45A

1.5mm

11-13

Corn

Corn flour

480

2

9FC-360

1.5mm

7.5-11

Corn

Corn flour

1000

3

9FC-500

1.5mm

22

Corn

Corn flour

2500

4

9FC-600

1.5mm

30

Corn

Corn flour

3500

5

9FC-800

1.5mm

55

Corn

Corn flour

8000

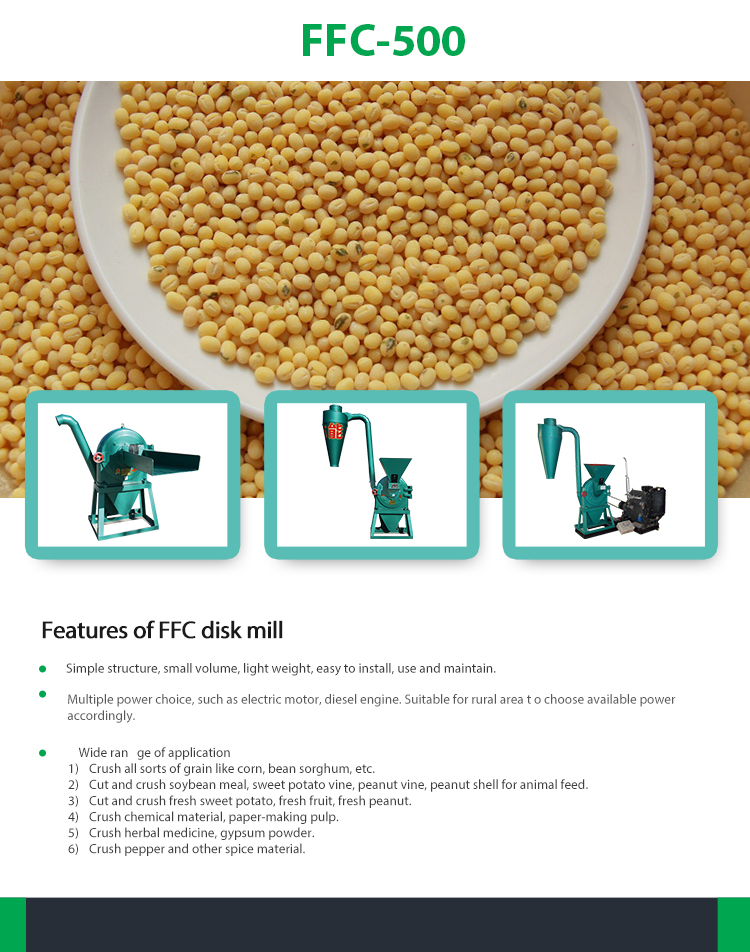

Advantages and wide application粉碎机的优势及应用范围

1Disk mill is suitable for home, small factory or unit use.

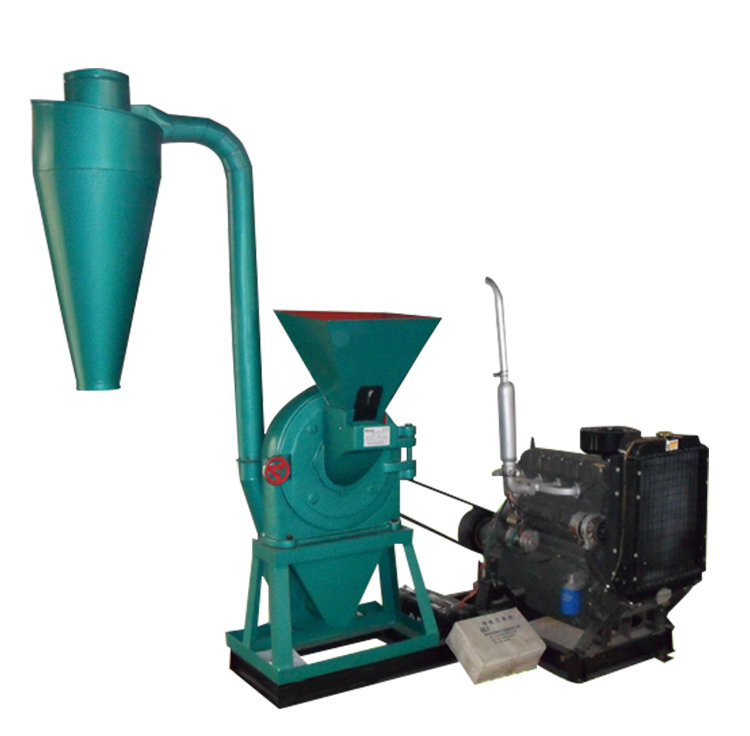

2 It is small, strong and reliable. It can use single phase 2.2kw motor. It can work without motor power.

3It is mostly wide use crushing machine. In life and industrial activities, it is really an ideal all purpose crushing machine.



1) All kind of grains of corn, sorghum, rice, soybean, etc.

2) Water soaked soybean.

3) All kind of animal feed

4) Chemical industrial material

5) Herbal medicine

6) Agricultural plant including fresh sweet potato, fresh potato, pepper, fresh fruit, etc.

7)  Pepper etc spice material

8) Peanut hull,  rice hull, wheat hull, corn cob, tree bark, leaves, straws.

9) Shrimp, fish powder, sea food

10) Dehydrated vegetables, cakes, tea. Etc.

11) Gypsum powder

12) Metal calcium

13) Wine factory

14) Fish bone factory





Main   Technial parameter
Model9FC-500
BrandKingrunda
Usage areaAll purpose
Crushing   fineness40-60 mesh
Capacity2000-2500kg/hour
Motor power22-30kw
Weight 460kg
Main shaft   R/min3300
Bearing for   wind blower6206
Bearing for   main machine6308
T type long   flat teeth qty5pc
T type short   flat teeth qty5pc

table 0.jpg

Production capacity for different grain material
MaterialSieve hole sizemmCapacity (kg/H)
wheat1.52500
corn1.21800
sorghum0.61500
rice hull1.81000
rice 0.3500

通用模板2 03.jpg
