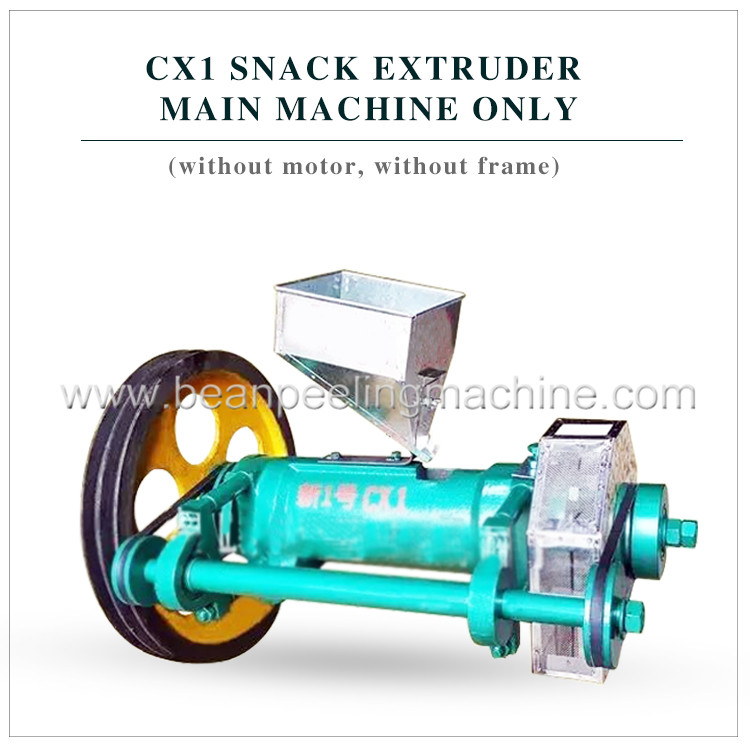

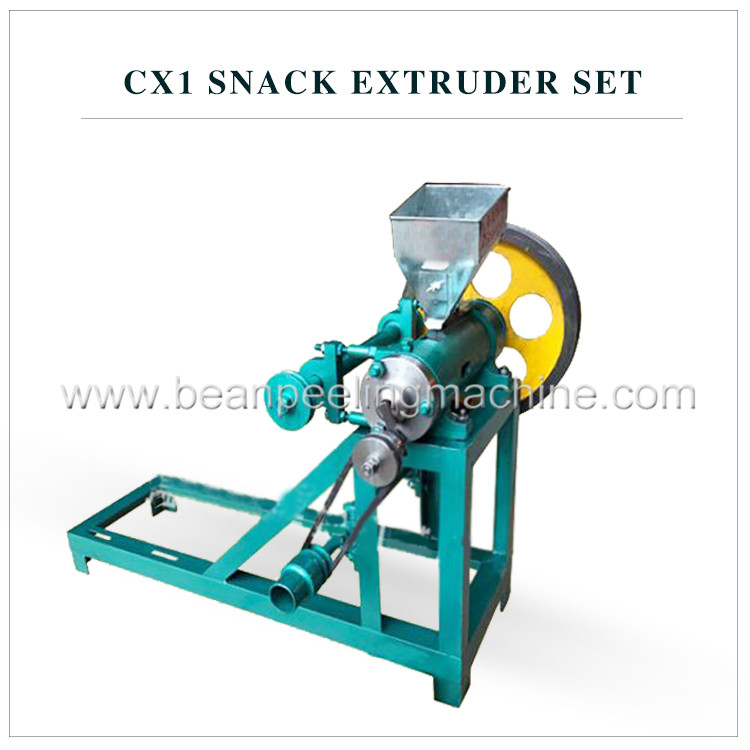

Model: CX1
Name: Latest technology snack food extruder
Output shape: hollow sitck, solid stick
It is composed of feeding inlet system, puffing system, engine system, etc. Heart is puffing system. Puffing system is composed of screw, screw sleeve (another name for it is screw barrel), die (another name for it is shape mould), machine head, front cylinder. Machines take in raw white rice, corn grits, and rice or grits go into puffing system, will flow into a narrow space between screw ad screw sleeve. When machine is running, screw and screw sleeve rotates at very high speed. Under frication and squeezing, material produces high temperature. Screw discharges high temperature material out of machine instantly and material is becoming puffed instantly, then become edible puff food.
| Model | Motor power | Capacity | Machine RPM |
| CX1 | 7.5kw, III phase, 4P | 45-50kg/hour | 480r/m |
