9FC-500G Super fine flour Large Type Crushing Machine. 9FC-500G is used in big factories and produce fine flour. It works with 18.5kw motor.Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.

Grain machinery.jpg

9FC-500 disk mill machine

disk mill.jpg

Introduction

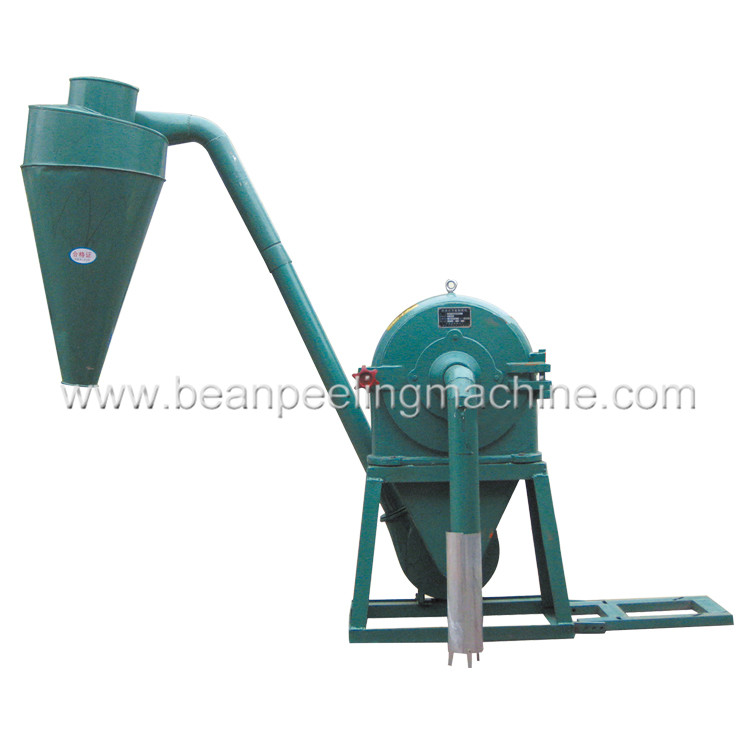

9FC-500G is used in big factories and produce fine flour. It works with 18.5kw motor. It is composed of base, motor, grinding plate, hopper, cyclone, etc. Grinding plate is corrugated with fast rotating rotators which effectively crush corn into power. Structure is easy, high production capacity, easy to install and operate. Customer can change sieves to control flour fineness.



Unique Design

1.       Auto feed, auto grind. Full automation design.

2.       Feeding mouth height is adjustable to control feeding.

3.       Wind supply mouth to give suitable wind capacity for auto feeding.

4.       Wind adjusting mouth to control feeding material volume.


Technical data

Model

9FC-500G

Brand

Kingrunda

Usage area

All purpose

Crushing fineness

0.3---12mm

Capacity

2200kg/hour based on 1.8-4mm seive

Motor power

18.5kw III phase

Weight

380kg

Bearing for wind blower

6206

Bearing for main machine

6308

Rotating diameter

500 for A type. 450 for B type

V-belt

1420

Main shaft R/min

3600

Outer diameter of rotating plate

500mm

T type flat teeth qty

10pc
