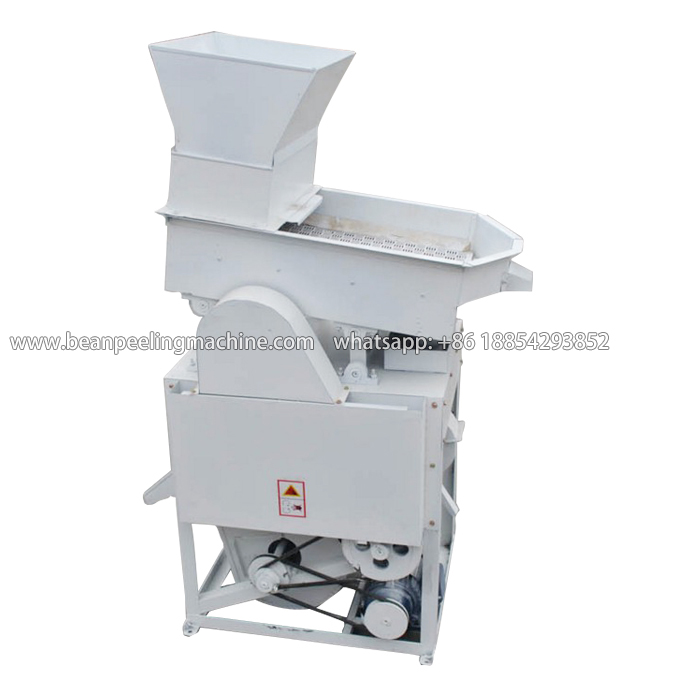

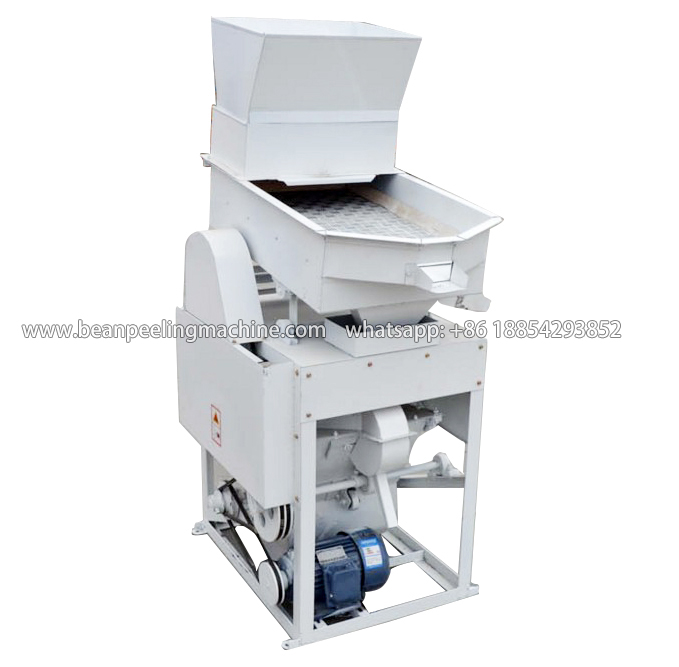

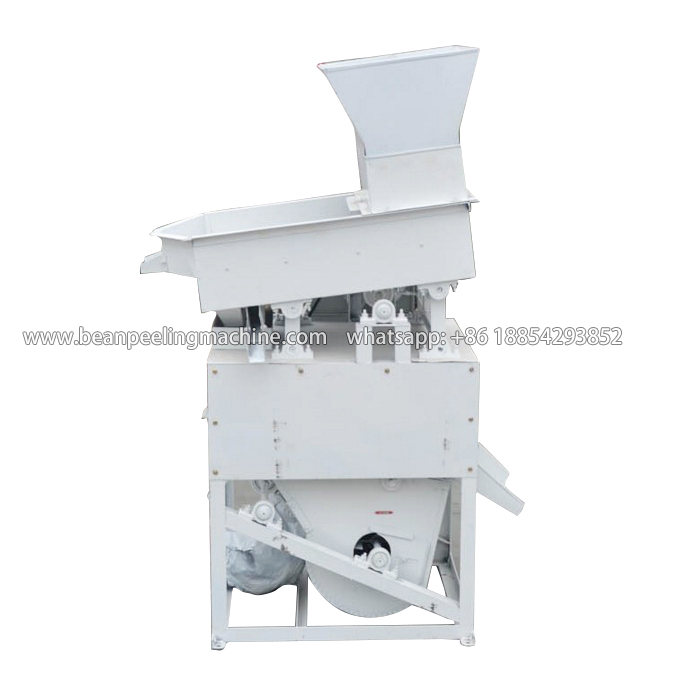

Introduction of SQ-50A rice destoner
his grain destoner machine can be used to raw grain cleaning works in food processing plant, food warehouse.separate the stone, pebble, clod from wheat, paddy, corn, sesame etc , according to material weight difference.
Different specifications of the screen surface can clean up the different large and small light impurity.
The destoner is mainly composed of hopper, double sieve, shingle, fan, motor of five parts, each part are connected by belt, such as frame, eccentric, connecting rod, etc.
This machine adopt vibration electric engineering as vibration source, having the characteristics that vibration amplitude can adjustable and move organization more reasonable, hard enduring.
Easy to dismantle, small space, low power consumption, maintenance simple, high efficiency of stone removing and width range etc.
Features of grain destoner machine:
1) Compact structure, good sealing.
2) Low noise, low energy consumption.
3) Stable operation, good cleaning effect and high production efficiency.
4) Due to the vibration motor driver, exciting force size, and direction of vibration sieve body angle can be adjusted according to need.
5) The built-in fan, no longer need to configure the network.
6) Compact structure, small footprint. 7). Stable operation and small noise.
Technical parameter
Model | SQ-50 |
Capacity | 1500-2000kg/h |
Mesh width | 500mm |
Power | 1.5kw |
Dip angle | 10-14 |
Packing size | 130*100*145cm |
Net weight | 143kg |
Gross weight | 175kg |
