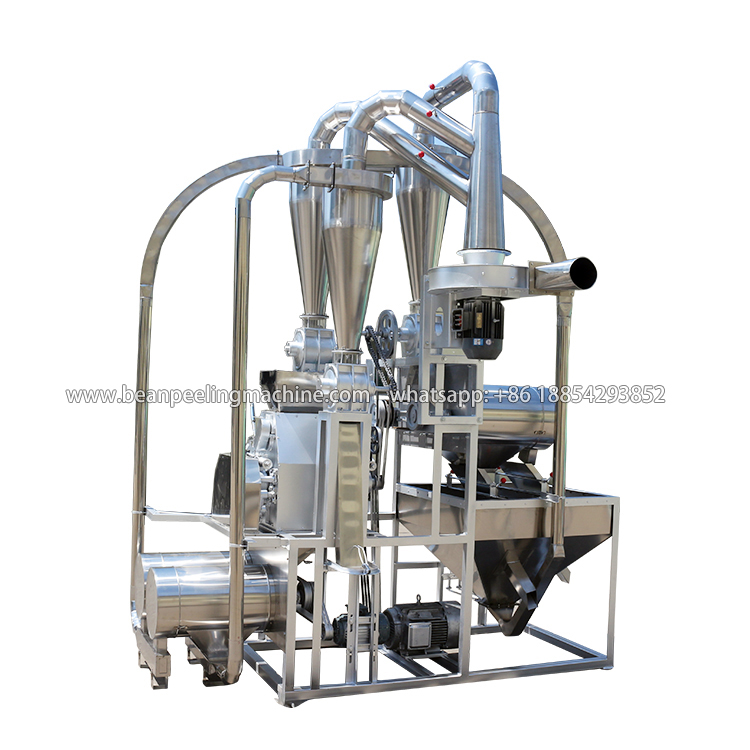

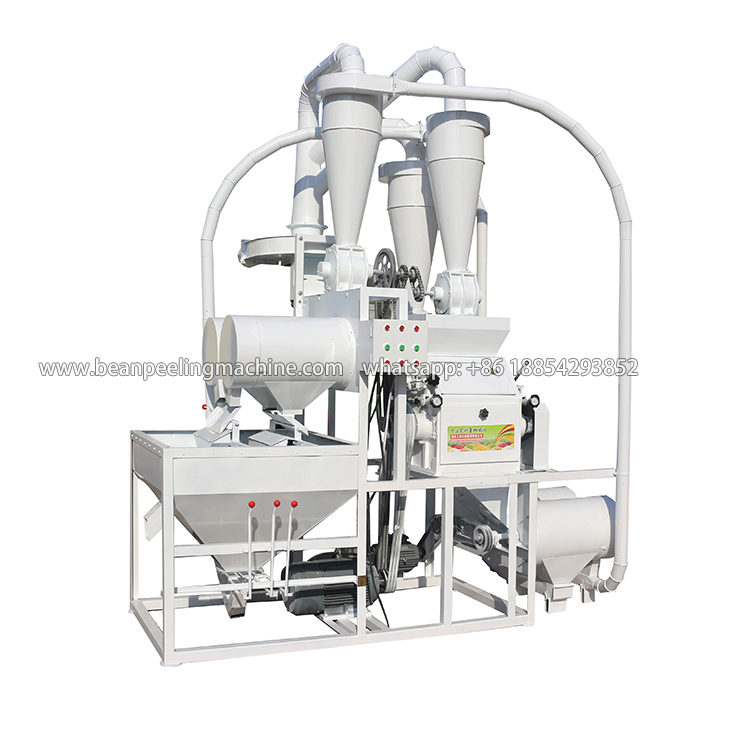

6FT-50C China best sell small Semolina wheat flour milling machine is for high grade market. It places on ground, feed material from ground, no need elevator. Receive flour, bran from ground, easy to operate. It can produce wheat and cereal grain flour, wheat semolina flour, standard life. Flour fineness can be adjusted from 90 mesh to 120mesh.

How 6FT-50C flour milling machine works?

1^st time extract wheat core

2^nd time grind wheat core

3^rd time grind wheat skin

Finished product show

This mahcine can grind/mill wheat, corn, bucketwheat ,rice,mazie,chickpea,soyabean,millet,chilli into flour.

Technical configuration & advantage

1. Machine body and pipes are powder coated for long time use, no color fading or scratches.

2. Metal parts are cut and produced by laser cutting machine and soldered by laser soldering machine for good precision to get

good sealing.

3. Easy to adjust rollers as rollers have been done by dynamic balance test. Ex-work two rollers have been calibrated in parallel.

Not like other suppliers, we only need to fix one roller with same space at two sides, adjust one handwheel to confirm rollers space.

4. Adopt most advanced synchronous belt drive system to reduce noise and good stability.

5. Four sifters can use four flour sieves in different mesh size according to market.

Technical data

Production capacity: 450-550kg/hour

Main shaft RPM: 650R

Wheat flour extraction rate:70%--85%

Final flour fineness: 40mesh to 160 mesh

Motor power: 15KW+1.5KW+4KW=20.5KW

Outer dimensions: 2600x1600x3500mm
